KeyBuss

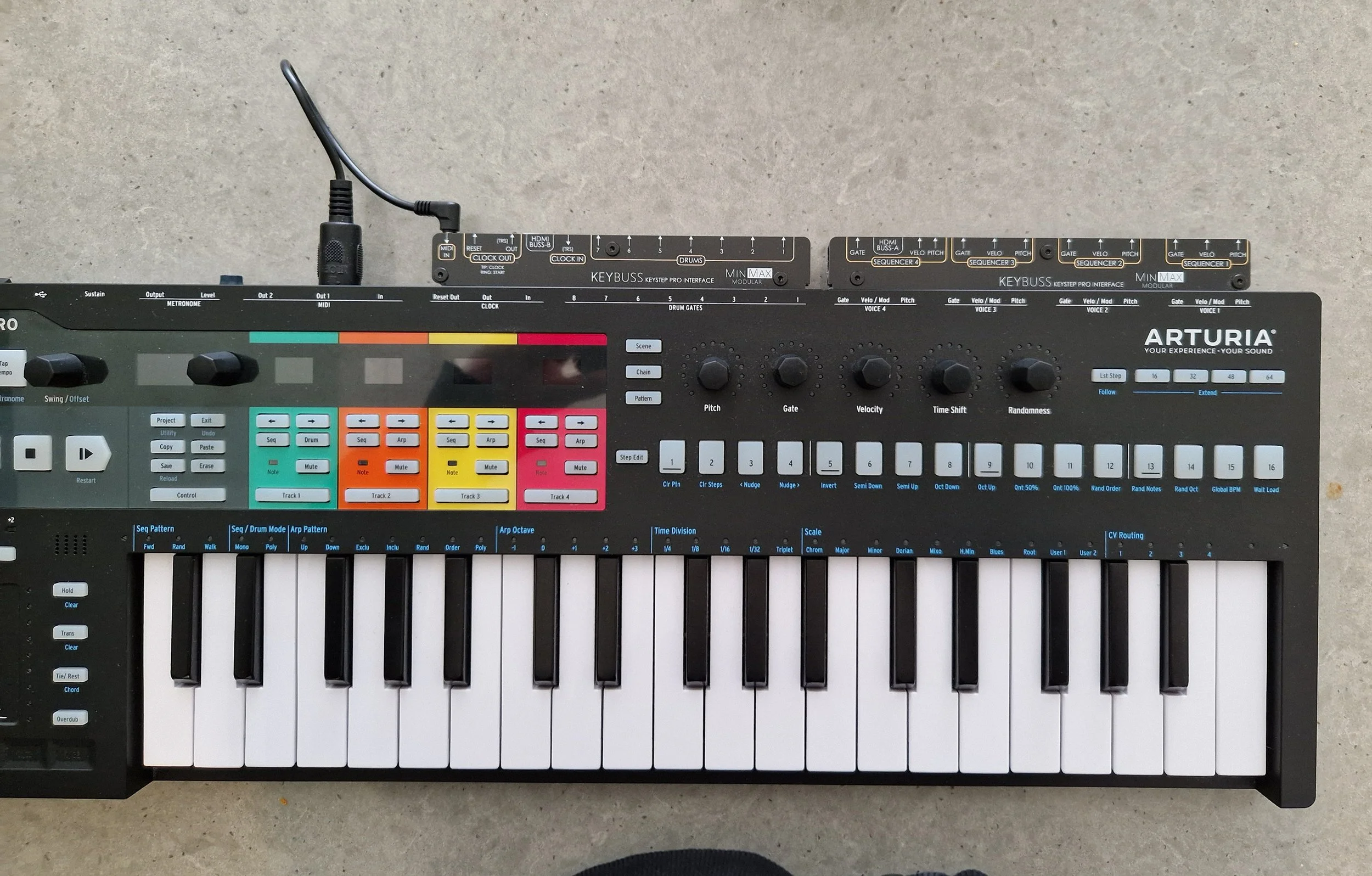

KeyBuss is a combination Eurorack module and dual plug-in boards for the KeyStep Pro. It uses 2 HDMI cables to connect to the module and offers easy access to every socket on the panel as well as all the clocking options (In and out). KeyBuss is fully buffered with very accurate and beefy opamps, and includes a 1:3 midi multiple for distributing signals within the system.

KeyBuss Features:

  • Comprehensive Signal Access: All CV, trigger, and gate signals, along with a selectable MIDI output, are accessible through the module. This includes clock options that typically require splitter cables.

  • Buffered Signals: All signals are buffered with precise, high-drive outputs, enabling the use of long HDMI cables (tested up to 5 meters).

  • Reliable Performance: Each HDMI connection is doubled ensuring solid performance, even with ultra-thin HDMI cables.

  • Compatibility: Fully compatible with 5V, 12V-trigger, and S-trigger gate formats. V/Oct, V/Hz, and modulation channels are buffered with output compensation for driving multiple modules.

  • 1:3 MIDI Multiple: Provides three MIDI outputs for distribution across your modular setup. This feature can also operate independently for other MIDI instruments, using a 3.5mm stereo socket with automatic A/B MIDI mode selection. A custom 3.5mm to MIDI cable is included.

  • Flexible Connectivity: Front or rear HDMI connections allow for a tidy appearance and more permanent installation.

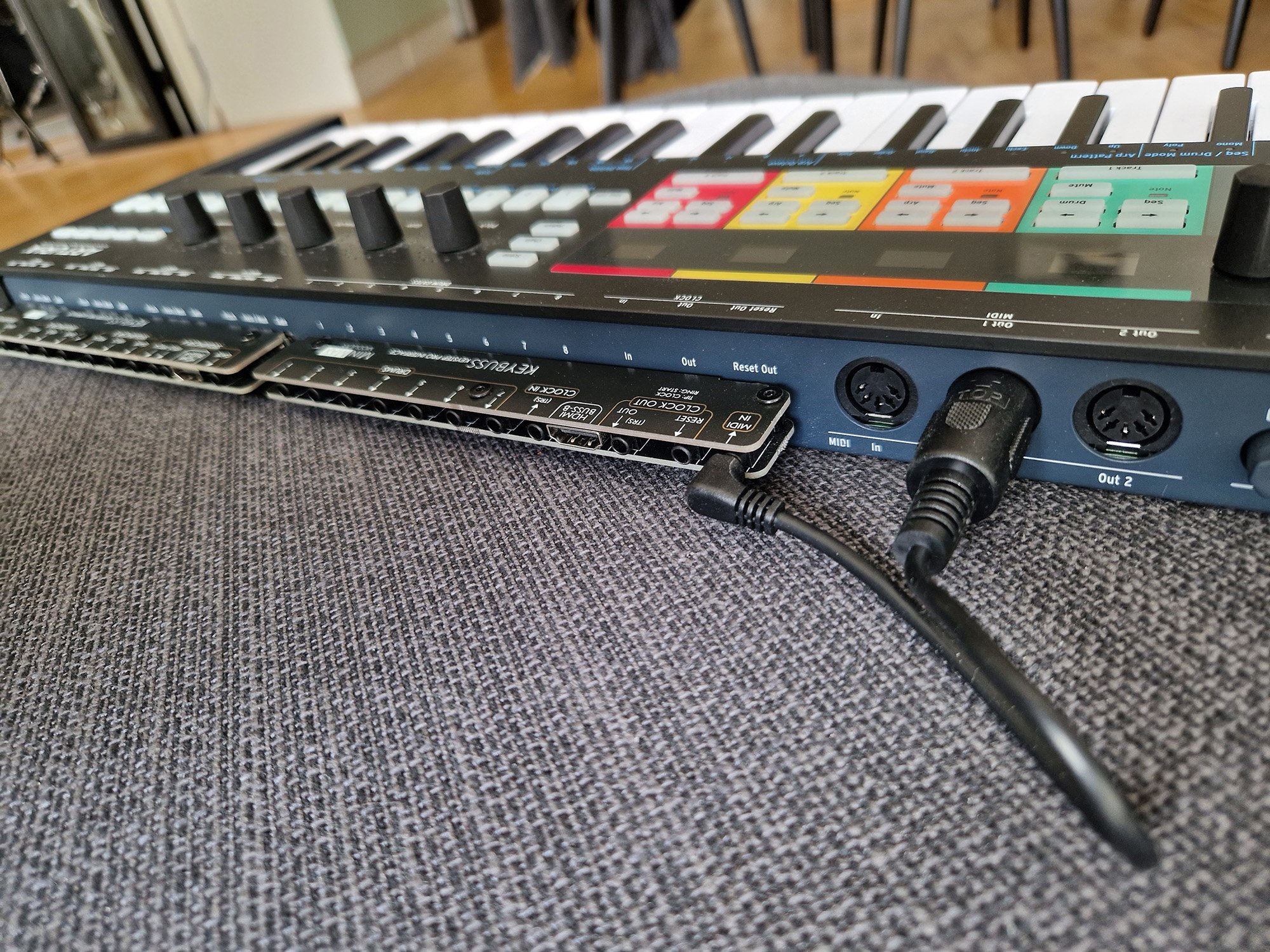

  • Back Panel Integration: All 3.5mm connections are mirrored on the back of the plug-in board for integration with existing setups without needing to uninstall the boards.

KeyBuss Specs:

  • Pitch CV: 0-10V

  • Mod CV: 0-10V

  • Gate Out: Selectable 5V, 10V, S-Trig

  • Drum Trigger Out: Selectable 5V, 10V, S-Trig

  • Clock, Run, Reset Out: 5V

  • Clock, Run In: >2v

  • MIDI Out: Isolated 5V Type-B

  • Modules Size: 8 HP, 40mm Deep

  • Power: 70mA +12V / 70mA -12V

Includes:

  • 8hp Eurorack module

  • 2 x plugin boards

  • Short 3.5mm to 5-pin DIN patch cable

  • Power cable, screws

  • 4HP blank panel, useful as a soft lever to pry the board out using provided cutouts
